Choosing S690QL is not a matter of accepting “690 MPa” on a quotation. You need to verify the EN 10025-6 designation, thickness-specific properties, −40 °C impact results, weldability controls, traceability and the Indian seller’s actual supply position before releasing the plate for fabrication.
Key takeaways
- Check yield strength against plate thickness, not the 690 designation alone.
- Require EN 10025-6 inspection documents, Charpy results and heat traceability.
- Control preheating, heat input and hydrogen when welding S690QL plate.
- Choose S690QL when strength-to-weight matters more than abrasion resistance.
What EN 10025-6 S690QL Actually Specifies
690 MPa is a grade class, not a promise that every S690QL plate delivers 690 MPa at every thickness. In the designation, S means structural steel, 690 identifies the nominal minimum yield-strength class, Q means quenched and tempered delivery, and L requires Charpy V-notch testing at −40 °C.
The usual minimum impact energy is 27 J at −40 °C, subject to the applicable EN 10025-6 edition and test requirements. A search for s690ql high tensile steel plate manufacturer in india is therefore only a starting point, not proof of conformity.
EN 10025-6 specifies 690 MPa minimum yield strength for S690QL plate up to 50 mm thick. The tables give lower minima for thicker ranges, so the certificate’s thickness row controls the required value.
| Designation | Toughness meaning | Buyer’s action |
|---|---|---|
| S690Q | Different impact-test temperature and toughness requirement | Confirm the stated temperature and energy |
| S690QL | Charpy testing at −40 °C; usual minimum 27 J | Require the −40 °C result |
| S690QL1 | Separate, more demanding toughness classification with different requirements | Do not accept it as interchangeable with S690QL |
Request the exact designation printed on the mill certificate, the governing EN 10025-6 edition, supplied thickness, delivery condition, impact temperature and test results. A product page combining S690QL and S690QL1 does not remove that distinction. A certificate stating only “high tensile” or “S690 equivalent” establishes neither the chemistry nor the required strength and toughness conformity.
How to Read the Chemistry, Mechanical Tests and Traceability
A genuine S690QL plate is proved by heat-specific documents, not by a quotation calling it “high tensile” or “equivalent”. For an S690QL plate supplier in India, use this check:
1. Read the heat-analysis table against the stated EN 10025-6 edition. Maximum values are carbon 0.20%, silicon 0.80%, manganese 1.70%, phosphorus 0.025%, sulphur 0.015%, chromium 1.50%, copper 0.50%, molybdenum 0.70%, nickel 2.00%, niobium 0.06%, titanium 0.05%, vanadium 0.12%, zirconium 0.15% and nitrogen 0.015%; carbon equivalent must not exceed 0.65.
Require the edition because product-analysis tolerances and table presentation depend on it.
2. On the EN 10204 3.1 certificate, locate the heat number, carbon equivalent, yield strength for the supplied thickness, tensile strength, elongation, Charpy V-notch energy and test temperature. Require 3.2 certification when independent inspection is specified. Obtain dimensional and surface-condition reports as separate evidence.
3. Add ultrasonic testing when internal soundness matters. Name EN 10160, or an agreed equivalent, together with the acceptance class; EN 10025-6 alone does not prove a particular ultrasonic class.
4. Match the heat number on the plate and stencil with the certificate before cutting. Request the certificate, not merely a generic mill certificate, and reject any plate whose identification cannot be followed through the documents.
Welding, Cutting and Forming Controls for Strength-Critical Work
A qualified welding procedure is the starting point, not a universal preheat number. Base it on the governing project code and approved WPS/PQR requirements; possible references include ISO 15614-1, EN 1011-2 and AWS D1.1, but none automatically governs every structure or service.
Set preheat and interpass limits from thickness, carbon equivalent, hydrogen level, restraint, consumable class, heat input and ambient conditions. Use low-hydrogen consumables, controlled storage and clean joints. Record thermal measurements and complete delayed inspection when the approved procedure requires it, because hydrogen-assisted cracking can appear after welding.
Obtain the plate producer’s recommended parameters and validate them for the actual thickness and joint detail. Excessive heat input or repeated thermal cycles can weaken the heat-affected zone. PWHT, hot forming and flame straightening can disturb the quenched-and-tempered balance, so require documented design and welding approval before using them.
Fabrication checklist:
1. Qualify the cutting process and inspect cut edges for cracking, hard zones, notches and laminations before welding or forming.
2. Obtain an approved bend radius and forming-temperature range for the exact thickness; do not apply mild-steel rules.
3. Qualify the hole-making sequence, including drilling, thermal cutting, edge cleanup and inspection requirements.
4. Control repair welding through the approved WPS, defect-removal method, reinspection and traceability records.
5. Measure preheat, interpass temperature and heat input against the procedure during production.
6. Inspect final dimensions, bend geometry, distortion, straightness and connection fit after forming.
When S690QL Beats S700MC, S890QL or Abrasion Plate
S690QL wins when you need low-temperature structural toughness and high strength without accepting the greater fabrication demands of S890QL. Its quenched-and-tempered delivery and specified 27 J Charpy requirement at −40 °C distinguish it from S700MC, which is thermomechanically rolled and often chosen for formed vehicle or machinery components.
| Option | Delivery and behaviour | Best decision |
|---|---|---|
| S700MC | Thermomechanically rolled; often better suited to formed components, subject to its own forming and welding procedure | Choose it for vehicle frames or machinery parts when its toughness and code requirements fit |
| S890QL | Higher strength, but tighter control of forming, welding, heat input and joint details | Choose it when design verification proves the extra strength offsets fabrication demands |
| S355 or S460 | Lower strength with simpler welding and broader fabrication familiarity; thicker sections may result | Choose it when weldability, availability or project-code acceptance outweighs weight reduction |
| Quard 400, 450 or 500 | Abrasion-focused plate, not automatically structural-toughness or weld-joint design material | Choose it for wear, not as a substitute for S690QL load-bearing design |
Suitable applications include crane booms, lifting equipment, heavy-transport frames, mining machinery and load-bearing structures. Pressure or process equipment requires explicit approval under the governing code.
Do not reduce thickness until you check:
- Buckling, local slenderness, fatigue and connection design
- Corrosion allowance, minimum thickness and weld-zone strength
- Approved forming limits, qualified welding procedures and project acceptance
Choose another grade for abrasion-only duty, elevated-temperature pressure service, severe corrosion, complex cold forming or a code that excludes S690QL. An s690ql plate stockist in india should provide grade-specific documentation, not rely on a strength label.
How to Compare an Indian Manufacturer, Supplier and Stockist
A quotation is comparable only after you establish whether the seller produces, distributes or merely holds the plate. An S690QL plate manufacturer in India is not the same as an authorised distributor or an S690QL plate supplier in India.
| Seller type | Evidence to request | Delivery meaning |
|---|---|---|
| Producing mill | Mill name, country of origin, heat-specific quantity and dimensions | Mill-order lead time |
| Authorised distributor | Mill certificate, authorisation evidence and imported-stock traceability | Stock or arranged procurement |
| Stockist | Plate markings, heat number, physical location, quantity and storage condition | Ex-stock only when physically held |
Ask in writing for the EN 10025-6 edition, thickness, width, cut length, surface condition, minimum impact temperature, UT standard and class, permitted repairs, inspection agency, packing, delivery location and replacement terms for nonconforming plate. Also confirm cut-to-size capability, minimum order and remnant availability.

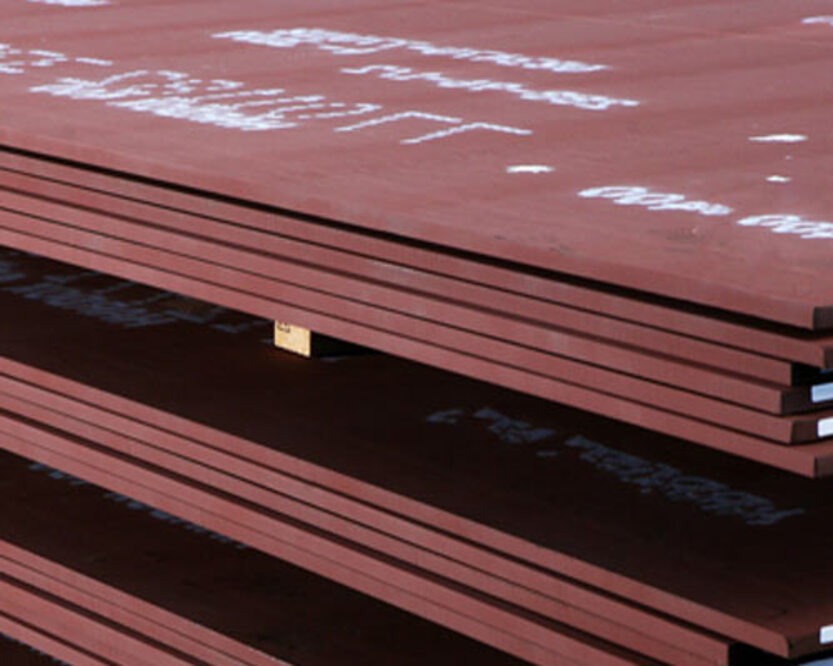

Before cutting, check markings, dimensions, flatness, laminations, edges, rust and identification continuity. Match the plate heat number with the stencil and certificate; broken traceability is a rejection risk.
Compare total fabrication cost, not price per tonne. Include welding qualification, preheating, consumable control, slower drilling or forming, inspection, distortion control and the cost of rejecting unidentified material.
Shyam Metals & Alloys can assist with grade identification, certificate review, sourcing or stockist coordination, but confirm exact dimensions, documents, origin, stock status and project approval in writing. Never assume availability, size or lead time.
Related products
 | Alloy Steel Plate Grades View product → |
High Strength Plates View product → |
Frequently asked questions
What does EN 10025-6 S690QL specify?
S690QL is quenched and tempered structural steel with a nominal 690 MPa yield-strength class and Charpy V-notch impact testing at −40 °C. The specified strength depends on plate thickness.
Which documents prove S690QL plate chemistry and traceability?
Compare the material certificate with the purchase order and require heat number traceability, chemical analysis, tensile results, thickness-specific yield strength and Charpy V-notch results.
What welding controls apply to S690QL plate?
Use a qualified welding procedure, control preheat and interpass temperature, limit heat input, select low-hydrogen consumables and preserve traceability after cutting.
When is S690QL preferable to S700MC, S890QL or abrasion plate?
Select S690QL when you need high structural strength with −40 °C impact performance. Compare S700MC for formed components, S890QL for higher strength and abrasion plate for wear rather than structural loading.
How do you compare an S690QL manufacturer, supplier and stockist in India?
Check whether the seller can provide the required thickness, EN 10025-6 documentation, test certificates, heat traceability, cutting controls and delivery records instead of comparing price alone.
